RS422 Multiplexer
Key Features
- Total of 10 inputs for incremental encorder
- 24 V DC supply with 3-pole phoenix clamp
- Compact housing for TS35 top hat rail mounting
Description
Overview of all interfaces
All interfaces of the inputs and outputs are designed as RS422, the signals are accessible via D-Sub9 plugs and sockets.

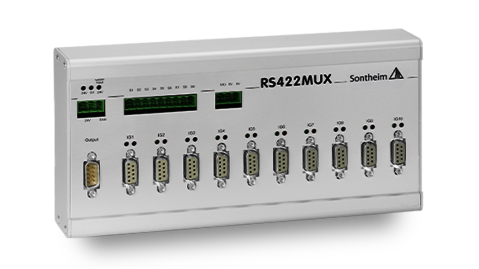

Housing
The aluminium module is extremely compact and offers the possibility of top hat rail mounting. All interfaces are conveniently available on the front panel.
LEDs and switches
In addition to several LEDs for displaying the operating status, the multiplexer has two LEDs each to indicate the status of the respective input. A 9-pin and a 3-pin phoenix connector are used for signal distribution.
Technical Data
| Hardware | |
|---|---|
| RS232 interface | Connection via D-Sub9 socket |
| Number of digital inputs | 10 |
| Number of digital outputs | 1 |
| Dimensions (l×w×h) | 241 mm × 120 mm × 48 mm |
| Housing | Aluminium housing, Protection class IP20 |
| Mounting rail | TS35 |
| Operating temperatur | 0°C up to +70°C |
| Rel. Humidity | 10 % up to 90 % non-condensing |
| Maximum baud rate | 500 kHz |
| Supply voltage | 24 V DC via 3-pole phoenix clamp |
| Switch data | |
|---|---|
| Power supply | 5 V |
| Level input | ±5 V |
| VIH | 2 V |
| VIL | 0.8 V |
| IOH | –440 μA |
| IOL | 8 mA |
