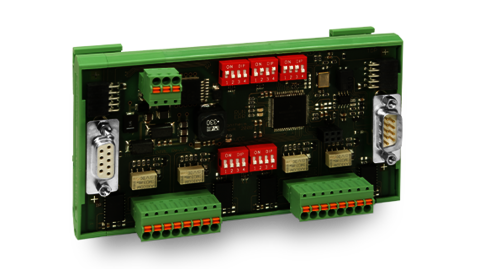

TM-PT100/1000-L

Module for measuring tem­per­a­tures for up to eight sen­sors with a coup­ling of 4-wire and 2-wire technology

Request
Product Flyer

Key Features

  • CANopen acc. to CiA Draft Standard DS 301 and 401
  • CAN baud rate up to 1 Mbit/s
  • Small dimensions
  • Free choice of connection technology (4-wire/2-wire) and resistance sensors (PT100/PT1000)
  • Up to 8 measuring sensors per module
  • Simple top hat rail mounting

Description

Microcontroller und CAN interface
With the powerful STAR 12 microcontroller, the sensors are recorded and the CAN pro­to­col is processed.
Furthermore, the module is able to carry out control functions via additional modules with a PWM/IO interface directly connected to the controller. The integrated CAN interface in ac­cor­dance with CANopen (DS 301 and 401) allows flexible use at different points and po­si­tions in the production process. It is de­signed according to ISO 11898.



LEDs and switches
The TM-PT100/1000-L has different LEDs for displaying the device status. The con­fi­gu­ration of the module address and baud rate is done easily and safely via DIP switches on the front of the module. Ac­cor­ding to CiA definition a baud rate of up to 1 Mbit/s can be set. In addition, the con­nec­tion tech­nol­ogy can be conveniently selected via DIP switch.

Technical Data

Hardware
CPU16-bit microcontroller
CAN1× CAN interface acc. to ISO 11898, galv. isolated,
connection with D-Sub9 plug and socket (bridged),
assignment acc. to DIN 41652
CAN protocolDS 301 and 401
Number of modules/bus127
Settingof module address via 2 DIP switches
of baud rate via DIP switch
Resistance sensor selection via DIP switch
Selection of the connection technology via DIP switch
Connection systemRigid lines 0.20 – 1.50 mm²
Flexible lines 0.20 – 1.50 mm²
Connection typeSpring connection and gold contacts
Connection technologyOptional 4-wire and/or 2-wire
Operating system display1× LED green for operating mode (run)
1× LED red for error status (err)
1× LED green for VCC
Dimensions (l×w×h)137 mm × 77 mm × 37 mm
Weight140 g without clamps
Type of installationTop hat rail
Storage temperature–30°C up to +70°C
Operating temperature0°C up to +60°C
(extended temperature range is optionally available)
Humidity90 % non-condensing
Confirmity to EMC requirementsEN 61000-6-4 and EN 61000-6-2 (Industrial sector)
Supply voltage (VB)12 V DC up to 30 V DC
Power consumption30 mA
All in- and outputs active, including LEDs350 mA
