IAO08 IO module with 8 analog outputs
IAO08 IO module with 8 analog outputs
IAO08 IO module with 8 analog outputs
IAO08 IO module with 8 analog outputs

IAO08

24 V module with eight analog outputs

Request
Product Flyer

Key Features

  • Safety features for high running safety
  • Galv. isolated CAN interface acc. to ISO 11898
  • Easy access to all interfaces
  • Own intelligence for complex CAN networks
  • Signal delay with less than 400 μs
  • Galv. isolated outputs
  • Compact aluminium housing with IP20 and integrated top hat rail mounting

Description

Overview of all interfaces
8 analog outputs

Housing

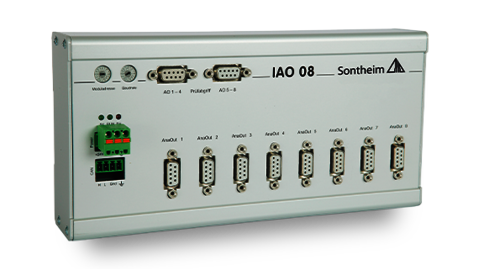

The aluminium module is extremely compact and offers the possibility of top hat rail mounting. All interfaces and LEDs are quickly and conveniently available on the front panel.

Switches
By means of HEX switches both baud rate and module address can be set and read at any time.



Signal processing
In addition to the outputs, the IAO08 has a powerful microcontroller that handles the control of the actuators and the CAN protocol. Further­more, safety mechanisms such as guar­ding are fully integrated in the Remote IO. If the cyclic transmission of CAN messages from the master fails, the module switches to STOP mode.

CAN interface
The integrated CAN interface enables flexible use at different points and positions in the production process. It is designed accor­ding to ISO 11898.

Technical data

Hardware
CPU16-bit microcontroller
CAN1× CAN interface acc. to ISO 11898, galv. isolated
Operating system display1× LED green for supply voltage (5 V)
1× LED green for operating mode (run)
1× LED red for error status (err)
Dimensions (l×w×h)241 mm × 120 mm × 48 mm
Weightca. 800 g
Protection classIP20
Storage temperature–10°C up to +70°C
Operating temperature0°C up to +60°C
Humidity90 % non-condensing
Power supply24 V DC ±10 %
Total currentapprox. 500 mA
Analog outputs
Number of outputs8
Resolution12 bit
Potential isolationOptocoupler
Output voltage–10 V up to +10 V DC
lout max20 mA
Filter circuitryintegrated
